Mercedes Benz GLA/CLA/A/ G class navigation GPS installation manual

This installation manual is for the Mercedes Benz GLA/CLA/A/ G class android navigation GPS retrofit, the car types including:

Benz GLA X156 2016-2019
Benz A class W176 2016-2018
Mercedes-Benz CLA C117/ X117 2015-2019
Mercedes-Benz G-Class G63 2017-2018
Original NTG 5.0/5.1

Installation steps:

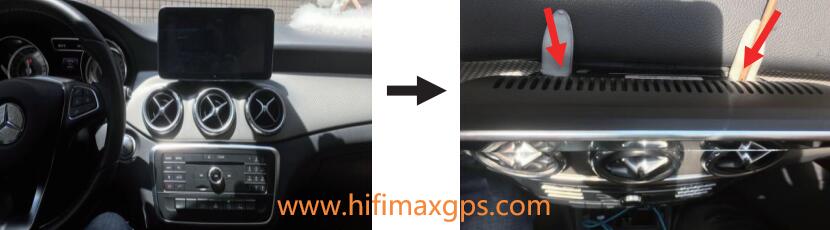

1.Original monitor(Please power off before installation) 2.Pry the cover of the monitor screws out and remove screws

Mercedes Benz GLA CLA A G navigation GPS install-01-02

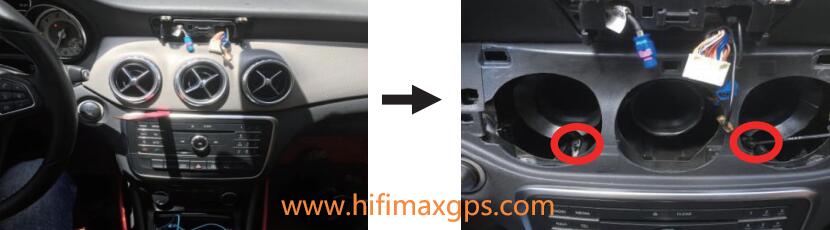

3.Pry out the air conditioning vent panel 4.Loosen the left and right fixing screws of the original HOST

Mercedes Benz GLA CLA A G navigation GPS install-03-04

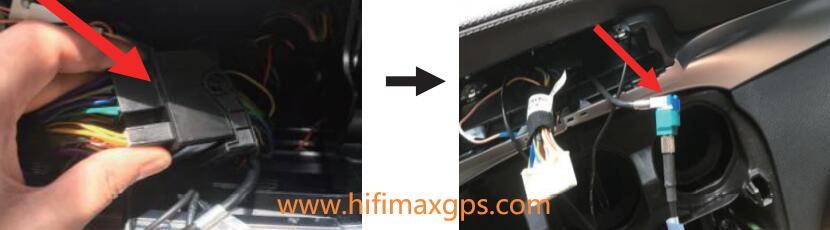

5.Remove the power harness from original host, and connect it to android harness 6.Connect original LVDS cable with Android LVDS cable in RCA adapter

Mercedes Benz GLA CLA A G navigation GPS install-05-06

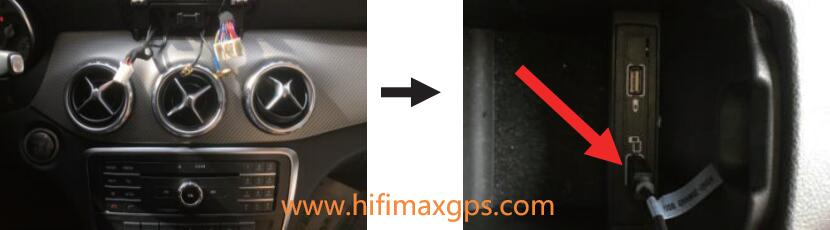

7.Assemble well the stand on original dashboard and put cables well 8.Plug Audio-USB into USB port of the armrest box

Mercedes Benz GLA CLA A G navigation GPS install-07-08

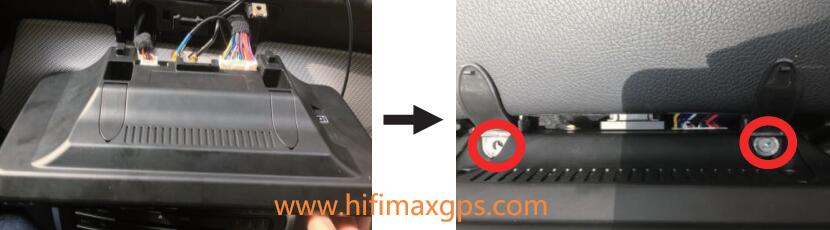

9.Connect well Android all cables. 10.Install android device, and lock the screws.

Mercedes Benz GLA CLA A G navigation GPS install-09-10

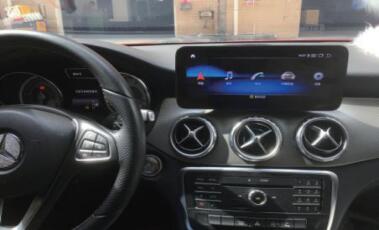

11.Effect picture after installation

Mercedes Benz GLA CLA A G navigation GPS install-11



Installation wire diagram

If above installation process can not show all details of installation, you can take a look the wire-diagram as below, and you can click here to view detailed instruction for the installation wire diagram.



Mercedes benz NTG 5.0 /5.1 Android Navigation GPS screen installation wire-diagram
