Mercedes Benz CLA 2013-2018 android navigation GPS installation manual

How to install the android navigation GPS screen to Mercedes Benz CLA 2013-2018? This blog post will talk in details, just follow the guidance below, then you will be ok to install the android screen on your own.



Installation steps.

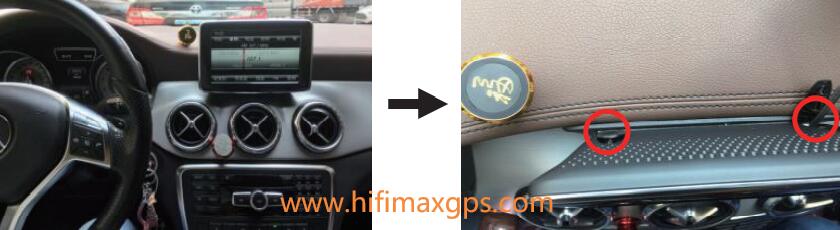

1. Original Monitor (Please power off before installation)  2.Pry the cover of the monitor screws out and remove screws

Mercedes Benz CLA 2013-2018 Navigation installation - 01-02

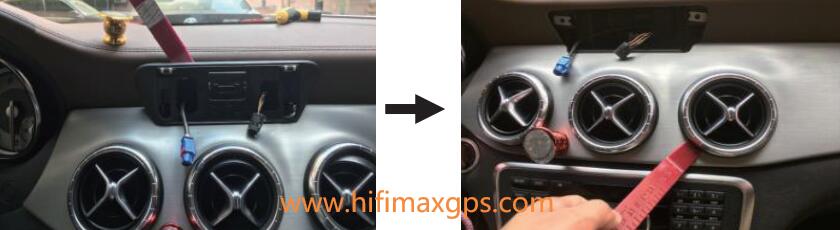

3.Pry decorative frame out from the stand of original monitor  4. Pry out the rightmost conditioning vent

Mercedes Benz CLA 2013-2018 Navigation installation - 03-04

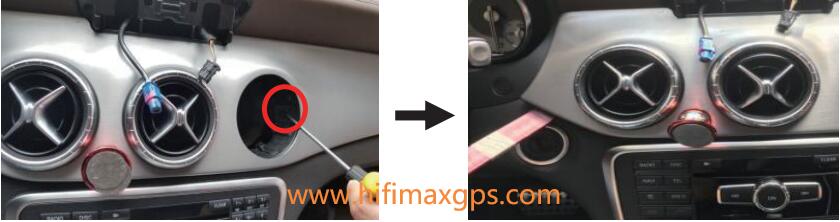

5. Take out the fixing screws of air conditioning port  6. Pry the air conditioning vent panel

Mercedes Benz CLA 2013-2018 Navigation installation - 05-06

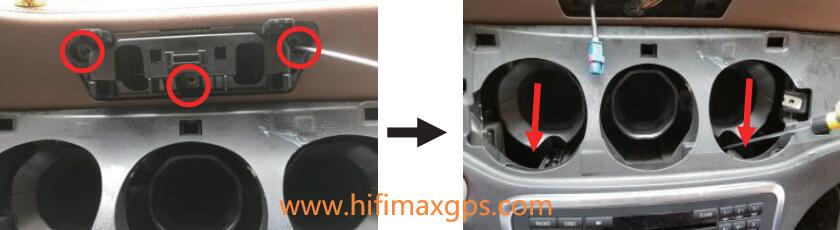

7. Take out the fixed stand of original monitor  8. Loosen the original car fixing screw

Mercedes Benz CLA 2013-2018 Navigation installation - 07-08

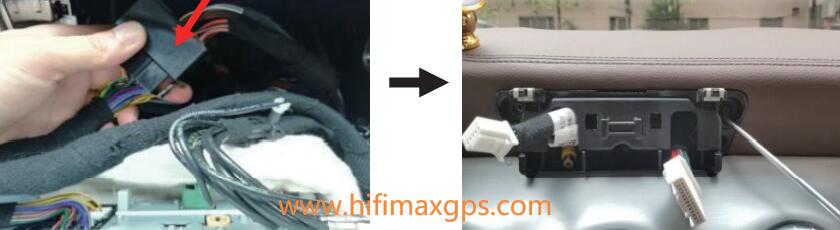

9.Remove the power harness from original host,and connect it to android harness.10. Put cables well,and assemble back stand of original monitor

Mercedes Benz CLA 2013-2018 Navigation installation - 09-10

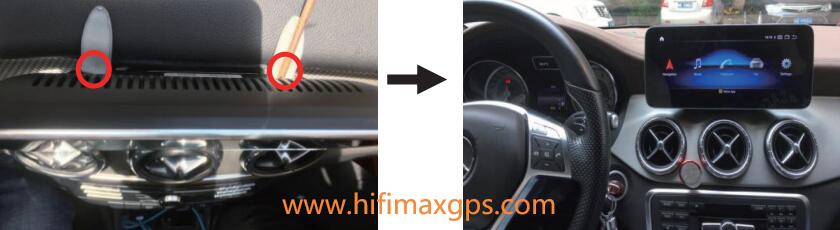

11.Fixing the android monitor well, and lock the screws  12.Effect picture after installation

Mercedes Benz CLA 2013-2018 Navigation installation - 11-12

Installation wire diagram

If above installation process can not show all details of installation, you can take a look the wire-diagram as below, and you can click here to view detailed instruction for the installation wire diagram.



Mercedes benz Command NTG 4.0 4.5 Android navigation GPS screen installation wire-diagram
