10.25'' /12.3'' Android 12 Navigation GPS screen for Mercedes Benz C class W204/C204/S204 2011-2014,NTG 4.5 [X312]
Android 12: Qualcomm Snapdragon 662(SM6115), Octa-core CUP (4*A73 + 4*A53), Bluetooth 5.0, HD 1920*720P IPS screen, Wi-Fi+4G LTE, 6GB+128GB, Apple Carplay/ Android Auto optional!
For Mercedes Benz C class W204/C204/S204 2011-2014,
Check car compatibility before order, below is the guidance:
1, Check original NTG version : NTG 4.5
Send us the photo (firstname.lastname@example.org) if you are not sure what NTG version in your car.
Note: If the car made in 2008-2010 with NTG 4.0 ( as below), you should order other model: [X302]
2, Check if the car is with AUX/AMI port
(AUX-In or AMI port - normally they are in the storage box or glove box)
10.25 inch VS 12.3 inch
Keep Mercedes Benz Original functions
It just replaces the original display only, keep your original CD radio in the car, thus it keeps all the factory functions, maintains your original Car Radio and all other functions.
Support all original functions: Compatible with all factory original functions, including original radio, CD, Car information display, Bluetooth, navigation, steering wheel control, joystick/knob control, parking camera, factory 360 camera, etc.
Android 12 OS,4GB+64GB, 6GB+128GB, 8GB+256GB ROM Optional
This android GPS navigation with Qualcomm snapdragon Octa-core CPU,
with 64GB/128GB/256GB ROM, you can install as much as apps without worrying, enjoy faster startup speeds, quickest response and smoothest user experience. No lags anymore!
Support Wireless Apple Carplay + Android Auto
A Smart Way to Use Your Phone in the Car
Simply connect your iPhone/Android device to the Android car stereo via Carplay. Use smart voice assistant or touch the display, you can get directions, make calls, send and receive messages, and enjoy music etc. A smarter, safer and more fun way to use your phone in the car, and keep you stay focused, connected and entertained.
A, This model intergrated with Wireless Apple Carplay & Android Auto. The App is Zlink.
iPhone (iOS): It is wireless connection for Apple Carplay.
(1) If your Android phone support wireless Android Auto, it can be wireless connection,
such as Samsung S8+, Watch the video demo
(2) If your Android phone is old model, it don't support wireless Android Auto,
in that case, you have to connect the USB (wired connection).
B, If you like to have external Carplay dongle, you can choose [CP-05],
here is the video demo for Carplay dongle, it support BOTH Apple Carplay and Android Auto.

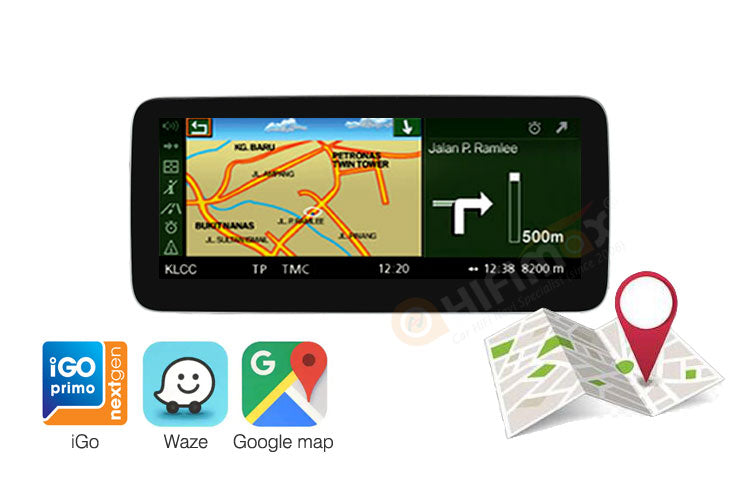

Built-in GPS Navigation
Support Google map, Waze, iGo, Navitel etc
You can easily by using the online/ offline map or purchasing a map card. It can quickly run all navigation apps like Google Maps, Waze etc. and offer up-to-date roadway information and concise driving directions.
Bluetooth 5.0 & A2DP
With faster transfer speed, wider coverage and enhanced anti-interference, the Bluetooth wireless technology allow you to stream Spotify and
Pandora from your phone to enjoy millions of songs you like with a high fidelity quality. And make hands-free calling without noise while driving.
Built-in WiFi & support 4G LTE
The android screen built-in WiFi & and with Wifi antenna, once more, it supports 4G LTE, it contains a SIM Card slot (you have to buy the SIM card and chose internet plan from your local network provider)
Android 12 model:
- CPU: Qualcomm snapdragon 662(SM6115)
- Octa-core CPU [4 * A73 (2.0Ghz) + 4 * A53 (1.8Ghz)]
- Adreno™ 610 GPU(950Mhz), Samsung 11nm
- Storage using EMCP chip, included eMMC 5.1 & LPDDR4x eMMC 5.1
- Android 12.0 Operating System
- RAM: 4GB/6GB/8GB
- ROM: 64GB/128GB/256GB
- Bluetooth 5.0
- Support Snapdragon™ X9 4G LTE modem
4G Support Brand (Qualcomm Snapdragon)
Note: Not all countries support 4G LTE, it depends on your local network service, we NOT guarantee this function will work in your side, don't order if you care this).
GSM: 850 / 900 / 1900
WCDMA: B2, B4, B5, B8
TD-SCDMA: B34, B39
FDD-LTE: B2, B4, B5, B7, B8
TDD-LTE: B38, B41
GSM: 850 / 900 / 1800
WCDMA: B1, B5, B8
TD-SCDMA: B34, B39
FDD-LTE: B1, B3, B5, B7, B8
TDD-LTE: B38, B39, B40, B41
● 10.25/12.3 inch IPS capacitive touch screen
● Resolution: HD 1920*720
● 2 USB, 1 TF card, 1 SIM card
● Built-in high sensitivity GPS
● Built-in WIFI, support 3D map
● Support Multi-Touch
● Built-in Canbus, support iDrive
● Support steering wheel control
● Support original car information
● GPS sound is output from the left front speaker
● Compatible with the original screen 5.8/ 7 / 8/10.25 inches
● Compatible with/without optical fiber
● Compatible original navigation
● Support all original features
● Support original radio
● Built-in Bluetooth, support original Bluetooth
● Built-in microphone
● Support joystick-control under the Android menu
● Support joystick-control under the original menu
● Support original/aftermarket camera
● Support Parking trajectory/radar
● Automatic support for AUX Switch - Some car types are manually switched
● Support split-screen function
● Built-in night screen function to enhance visual effects
● Support voice control
● CPU built-in Hexagon 546 DSP sound quality is further improved
● using X9 LTE modem, support full Netcom 4G network: LTE Category 7 (downstream) / 13 (upstream)
● support 3 major satellite systems: GPS / Beidou / Glonass, high sensitivity!
● support dual-band 2.4G and 5G WIFI, make full use of high-end mobile phones supporting 5G hotspots
● SD card uses SD3.0, the largest 128GB
● support common video formats: MP4, AVI, MKV, WMV, MOV, FLV and other common video formats
● Support common audio formats: MP3, WMA, AAC, FLAC, APE, WAV and other common audio formats!
(1) Power cable: 1 harness
(2) GPS antenna: 1 pcs
(3) LVDS cable: 1 pcs
(4) WiFi antenna : 1 pcs
(5) RCA cable: 1 pcs
(6) Bracket: 1 pcs
Optional kits (Extra cost):
1, Carplay Dongle [CP-05]
2, Rear View Camera (click here)
3, DVR dashcam (click here )
