Mercedes Benz E W212 (13-15) android navigation GPS installation manual

This acticle is the installation manual for Mercedes Benz E W212 (13-15) android navigation GPS system, it is totally plug and play, easy for installation. please check the details as below.



Installation steps:

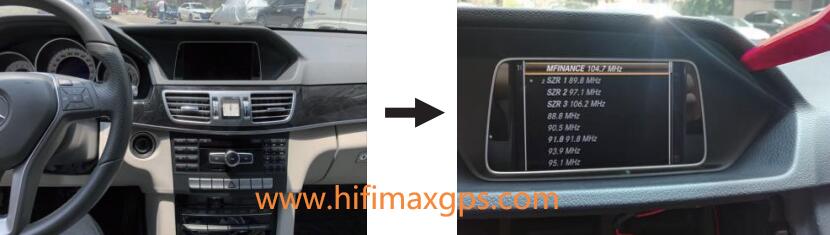

1.Original Monitor (Please power off before installation) 2.Pry out the frame of original monitor and remove the fixing screws

Mercedes Benz E W212 (13-15) GPS navigation installation 01-02

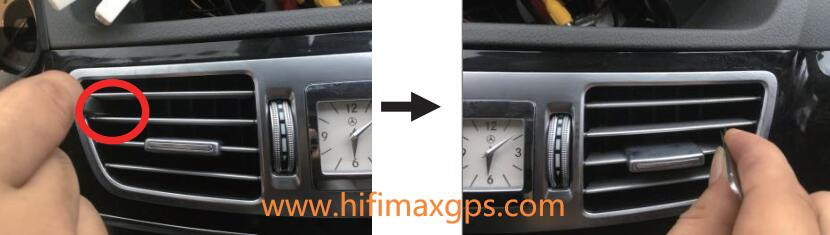

3.Pry the buckles on the left side of the air conditioning vent 4.Pry the buckles on the right side of the air conditioning vent

Mercedes Benz E W212 (13-15) GPS navigation installation 03-04

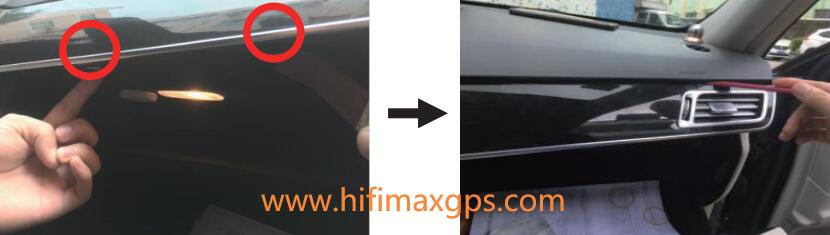

5.Open the glove box and pull down the buckle  6.Pry the top buckles from the air conditioning vent.(Note:Fixed well the vent when prying the buckles)

Mercedes Benz E W212 (13-15) GPS navigation installation 05-06

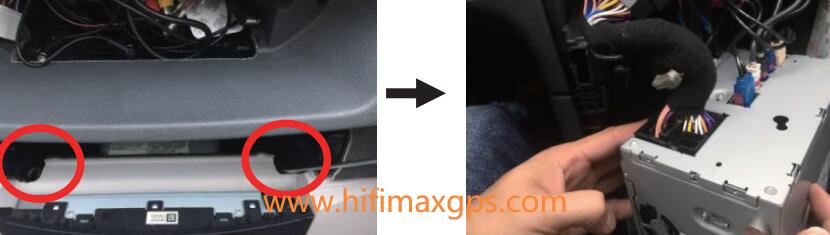

7.Remove the left and right fixing screws of the original HOST  8.Remove the power harness from original host, and connect it to android harness

Mercedes Benz E W212 (13-15) GPS navigation installation 07-08

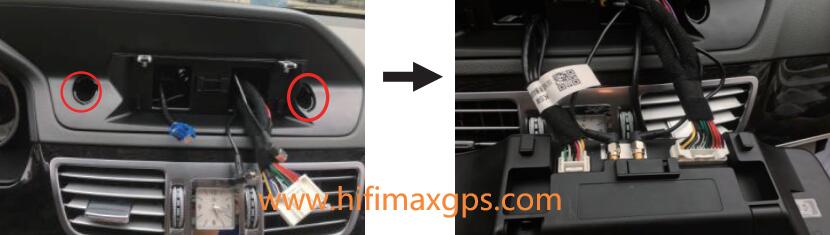

9.Assemble well the stand on original dashboard and put cables well  10.Connect well Android all cables.

Mercedes Benz E W212 (13-15) GPS navigation installation 09-10

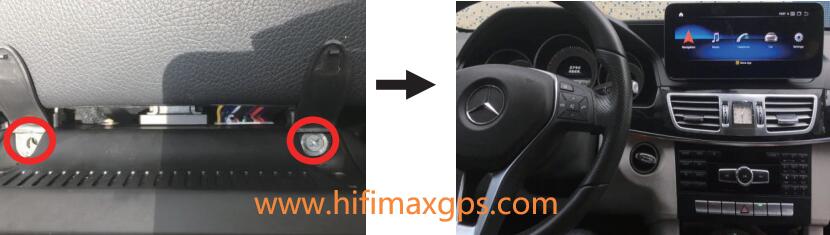

11. Assemble Android monitor to the stand, pry out the screw cover and lock the screws. 12.Effect picture after installation

Mercedes Benz E W212 (13-15) GPS navigation installation 11-12





Installation wire diagram

If above installation process can not show all details of installation, you can take a look the wire-diagram as below, and you can click here to view detailed instruction for the installation wire diagram.

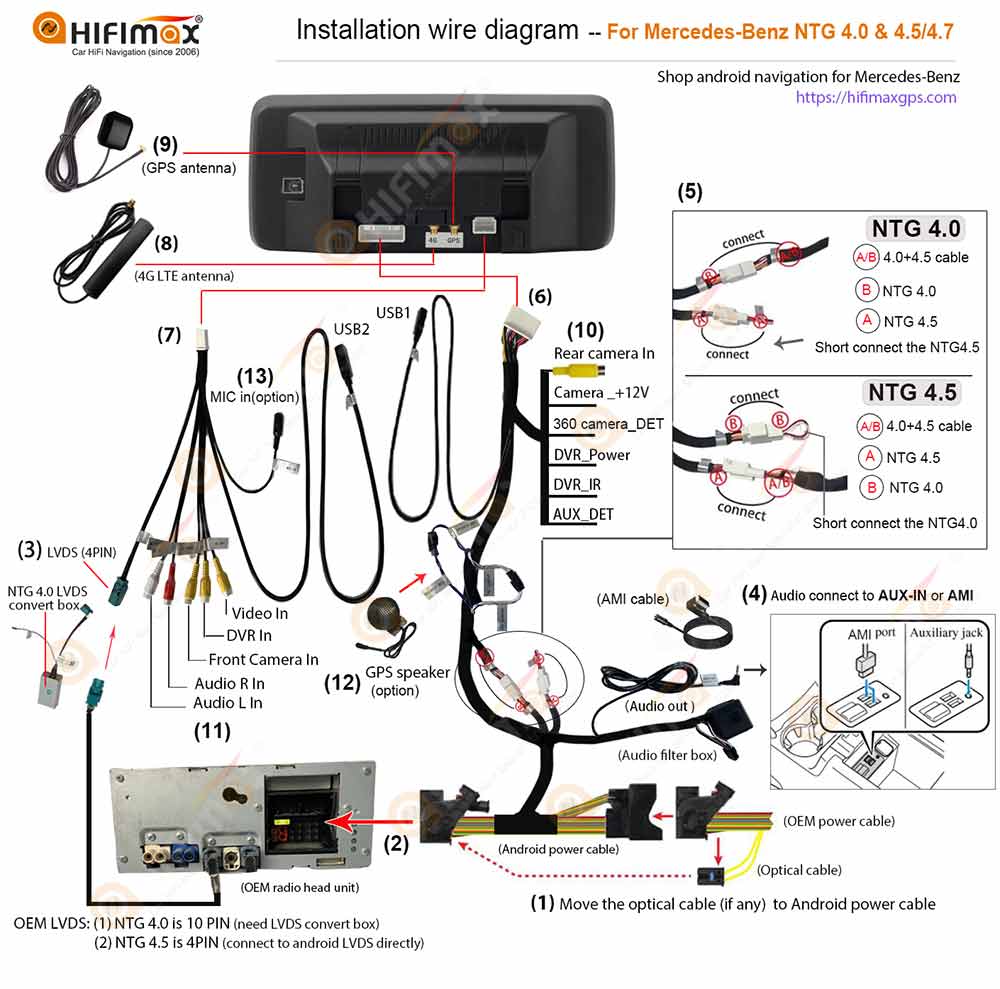

Mercedes benz Command NTG 4.0 4.5 Android navigation GPS screen installation wire-diagram
