Installation manual for Mercedes Benz GLK X204 2008-2012 android navigation GPS

This acticle is the installation manual for Mercedes Benz GLK X204 2008-2012 android navigation GPS system. It is plug and play, no modification, no cutting the wires, you can install the android screen on your own.



Installation steps:

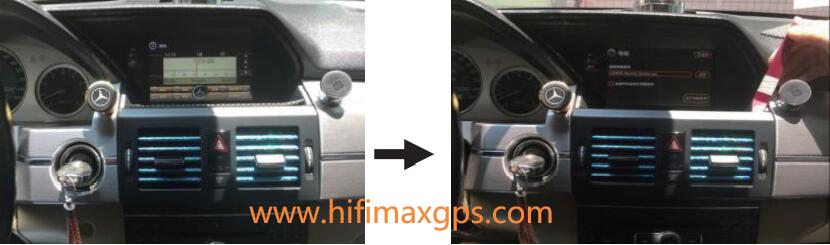

1. Original Monitor (Please power off before installation) 2. Pry out the decorative plate of air conditioning outlet

Mercedes Benz GLK X204 2008-2012 navigation installation-01-02

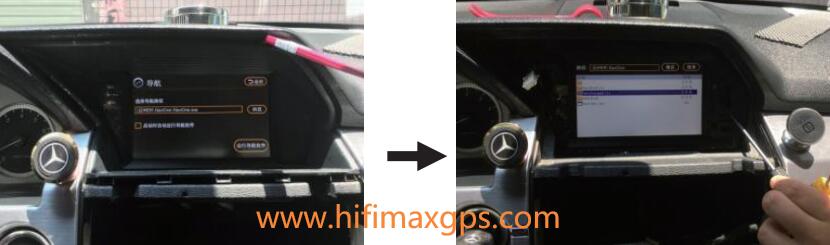

3.Pry out the decorative frame from the original monitor. 4.Remove the fixing screws of the original monitor

Mercedes Benz GLK X204 2008-2012 navigation installation-03-04

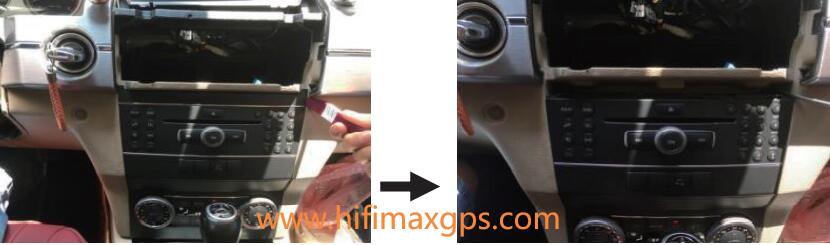

5.Pry out the decorative strip of the original monitor  6.Remove the fixing screws of the original monitor

Mercedes Benz GLK X204 2008-2012 navigation installation-05-06

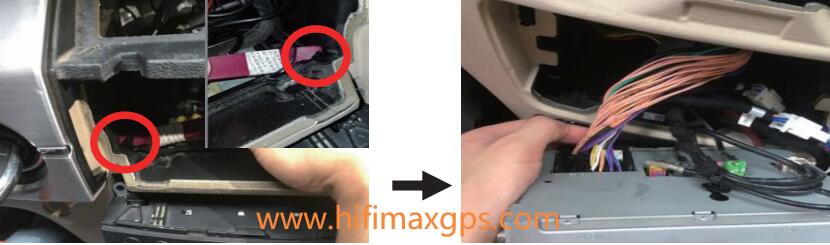

7.Pry out the buckles from the left and right sides of the original host   8. Unplug the original power harness from Host,and connect it to android harness.

Mercedes Benz GLK X204 2008-2012 navigation installation-07-08

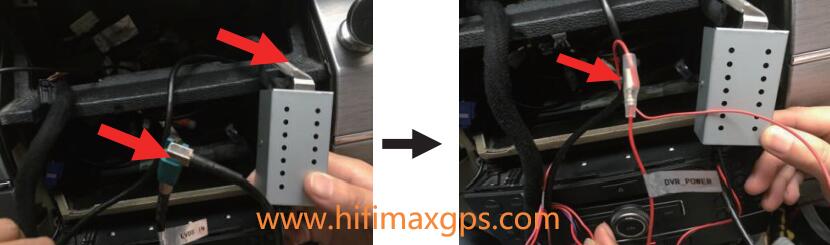

9. Connect original LVDS cable to LVDS adapter  10.Connect 12V power supply to LVDS adapter.

Mercedes Benz GLK X204 2008-2012 navigation installation-09-10

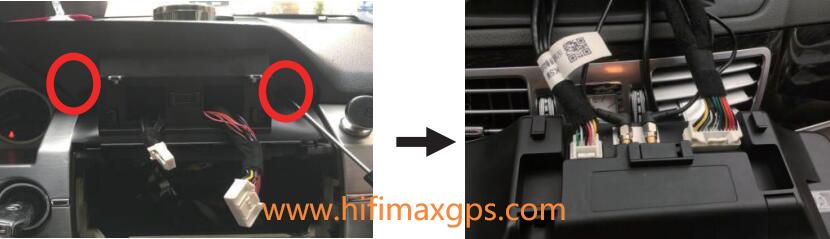

11.Assemble well the stand on original dashboard and put cables well. 12. Connect well Android all cables.

Mercedes Benz GLK X204 2008-2012 navigation installation-11-12

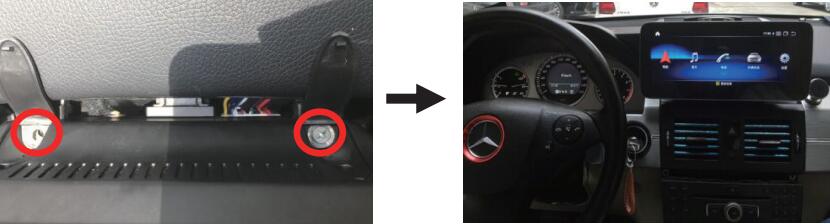

13.Fixing and install android device 14.Effect picture after installation

Mercedes Benz GLK X204 2008-2012 navigation installation-13-14

Installation wire diagram

If above installation process can not show all details of installation, you can take a look the wire-diagram as below, and you can click here to view detailed instruction for the installation wire diagram.



Mercedes benz Command NTG 4.0 4.5 Android navigation GPS screen installation wire-diagram
