Mercedes Benz ML W166 GL X166 Android Navigation Installation Manual

How to install android navigation GPS screen to Mercedes Benz ML W166 GL X166 2012-2015 NTG 4.5/ 4.7? Just follow step by step instructions below and complete the installation on your own, it is plug and play, no need to program or coding the car, no modification, no cutting the wires, totally plug and play!

If you like to buy the Mercedes-Benz ML W166 /GL X166 android navigation screen, please click here.


Installation steps

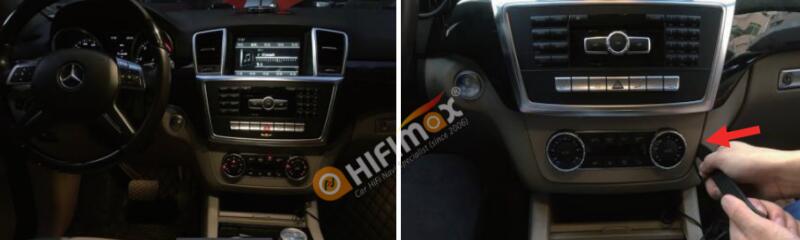

1. Original Monitor(Please power off before installation) . 2.Pry out the decorative strip of air conditioning knob.

Mercedes-Benz ML W166 GL X166 android navigation installation step 1/2

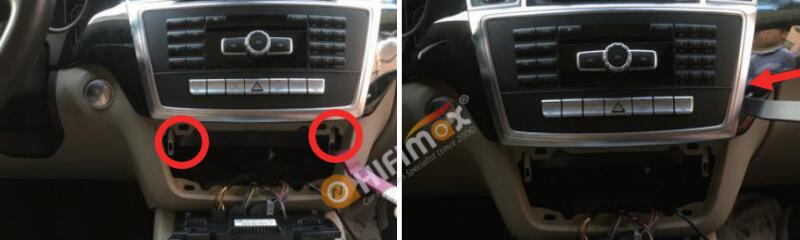

 3.Remove the fixing screws of air conditioning knob. 4.Pry out the original HOST

Mercedes-Benz ML W166 GL X166 android navigation installation step 3/4

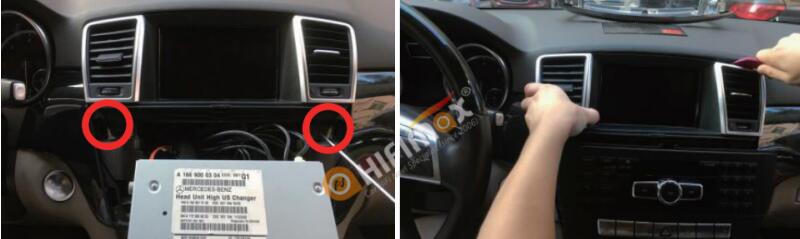

5.Remove the fixing screws of the air conditioning. 6.Open the air conditioning vent panel

Mercedes-Benz ML W166 GL X166 android navigation installation step 5/6

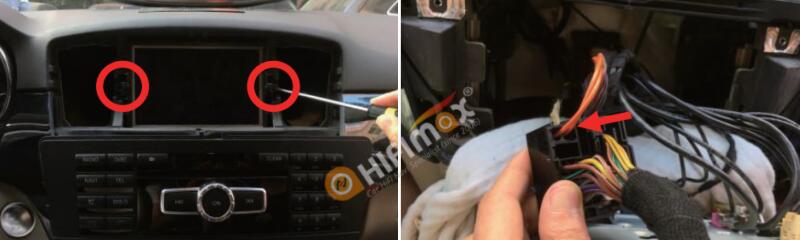

7. Loosen the original car screen fixing screw. 8.Connect the fiber optic cable of the original car to android harness

Mercedes-Benz ML W166 GL X166 android navigation installation step 7/8

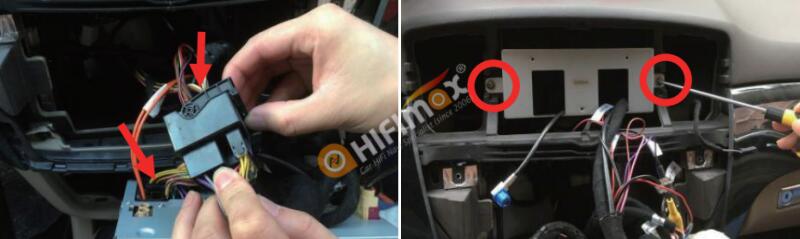

9.Remove the power harness from original host, and connect it to android harness.10.Install the the fixed stand

Mercedes-Benz ML W166 GL X166 android navigation installation step 9/10



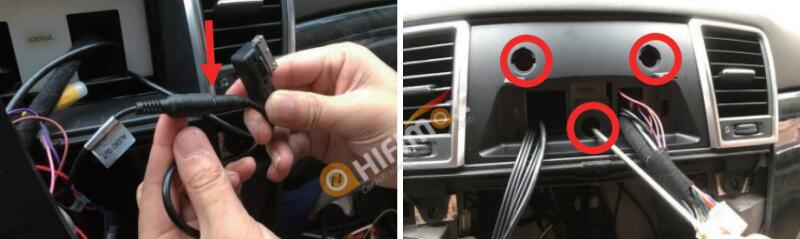

11. Connect the AMI audio cable 12.Restore the air conditioning panel and install the base of android monitor.

Mercedes-Benz ML W166 GL X166 android navigation installation step 11/12

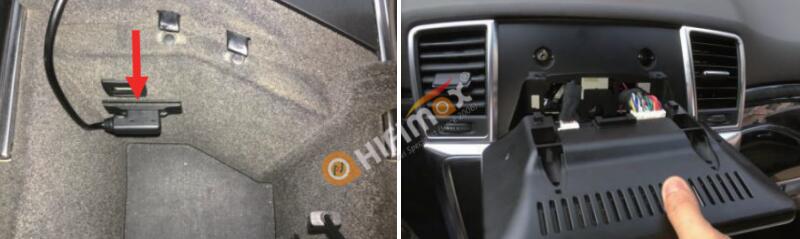

13. Insert the AMI audio adapter cable into the armrest box interface 14. Connect well Android all cables

Mercedes-Benz ML W166 GL X166 android navigation installation step 13/14

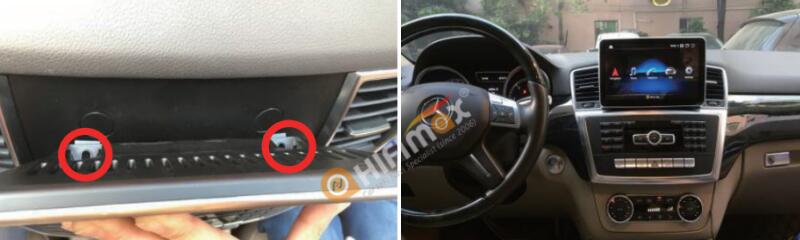

15. Fixing and install android device  16.Effect picture after installation

Mercedes-Benz ML W166 GL X166 android navigation installation step 15/16





Installation wire diagram

If above installation process can not show all details of installation, you can take a look the wire-diagram as below, and you can click here to view detailed instruction for the installation wire diagram.



Mercedes benz Command NTG 4.0 4.5 Android navigation GPS screen installation wire-diagram
