Mercedes Benz C class W204 2011-2014 GPS navigation Installation manual

How to install the android navigation GPS screen to Mercedes Benz C class W204 C204 S204 (2011-2014) with NTG 4.5? Please read below instructions, it show step by step for the installation, it is totally plug and play, you can install it on your own.

Installation steps:

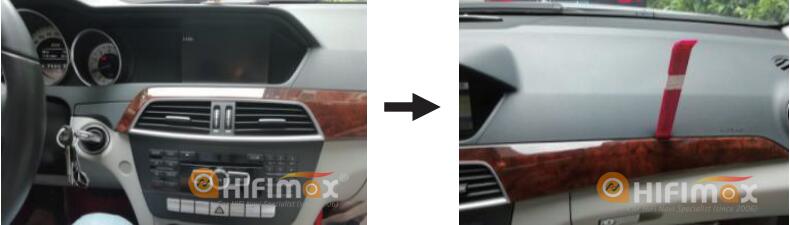

1. Original Monitor(Please power off before installation) 2. Pry out the air conditioning vent panel

Mercedes Benz C W204 2011-2014 Navigation GPS Installation 01 02

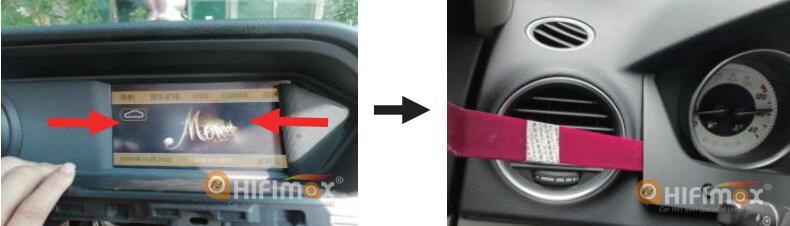

3.Take out the left and right decorative cover of the panel  4. Pry the decorative strip shown in Figure

Mercedes Benz C W204 2011-2014 Navigation GPS Installation 03 04

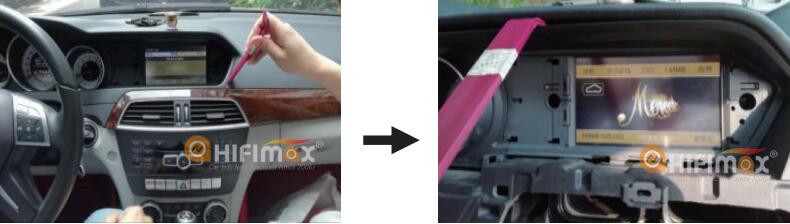

5. Pry the right decorative strip 6.Pry the top decorative strip and take it out

Mercedes Benz C W204 2011-2014 Navigation GPS Installation 05 06

7.Remove the fixing screws of the original monitor  8.Loosen the fixing screws of the original HOST, and take it out.

Mercedes Benz C W204 2011-2014 Navigation GPS Installation 07 08

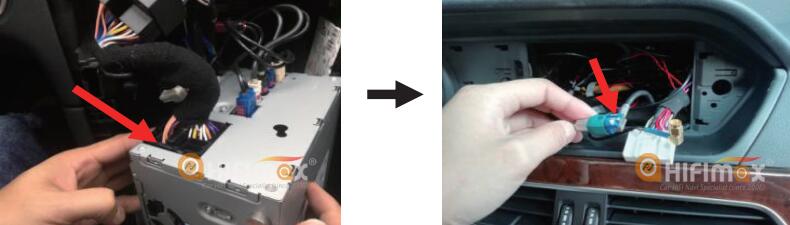

9.Remove the power harness from original host, and connect it to android harness. 10.Connect original monitor LVDS cable with Android LVDS cable in RCA adapter

Mercedes Benz C W204 2011-2014 Navigation GPS Installation 01 02

11. Assemble well the stand on original dashboard,and locked the screws ,then put cables well. 12.Assemble Android monitor to the stand, pry out the screw cover and lock the screws.

Mercedes Benz C W204 2011-2014 Navigation GPS Installation 11 12

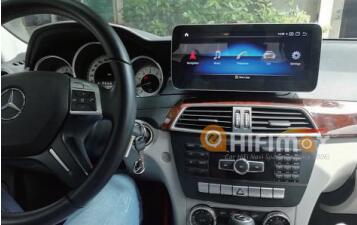

13. Effect picture after installation

Mercedes Benz C W204 2011-2014 Navigation GPS Installation 13



Installation wire diagram

If above installation process can not show all details of installation, you can take a look the wire-diagram as below, and you can click here to view detailed instruction for the installation wire diagram.



Mercedes benz Command NTG 4.0 4.5 Android navigation GPS screen installation wire-diagram
